Orchestrating ML Pipelines with Azure Data Factory

Review and execution boundary

Azure Data Factory v2 Custom activity on Azure Batch; not the similarly named Fabric Azure Batch activity.

Reviewed on 7 October 2026 against the official source snapshots linked below. The review is bounded editorial correction, not certification of every dependency, security property or cloud deployment. Historical setup commands and optional exercises were not executed. No cloud resources, third-party packages or external side effects were created. Old screenshots and unavailable private assets remain in the private recovery archive, not prerequisites for this lesson.

Using ADF pipelines for orchestrating ML training & inference

Introduction

An ML workflow needs more than a training script: data must arrive in storage, compute must run the script, and the resulting model must be available for inference. This MNIST proof of concept separates those responsibilities: Blob Storage holds the artifacts, Azure Batch runs Python tasks, and Azure Data Factory (ADF) is the proposed orchestrator. The walkthrough records the resource setup and Batch job; the ADF-triggered run remains a next step rather than a completed end-to-end test.

Project Setup

Creating a GitHub Repository

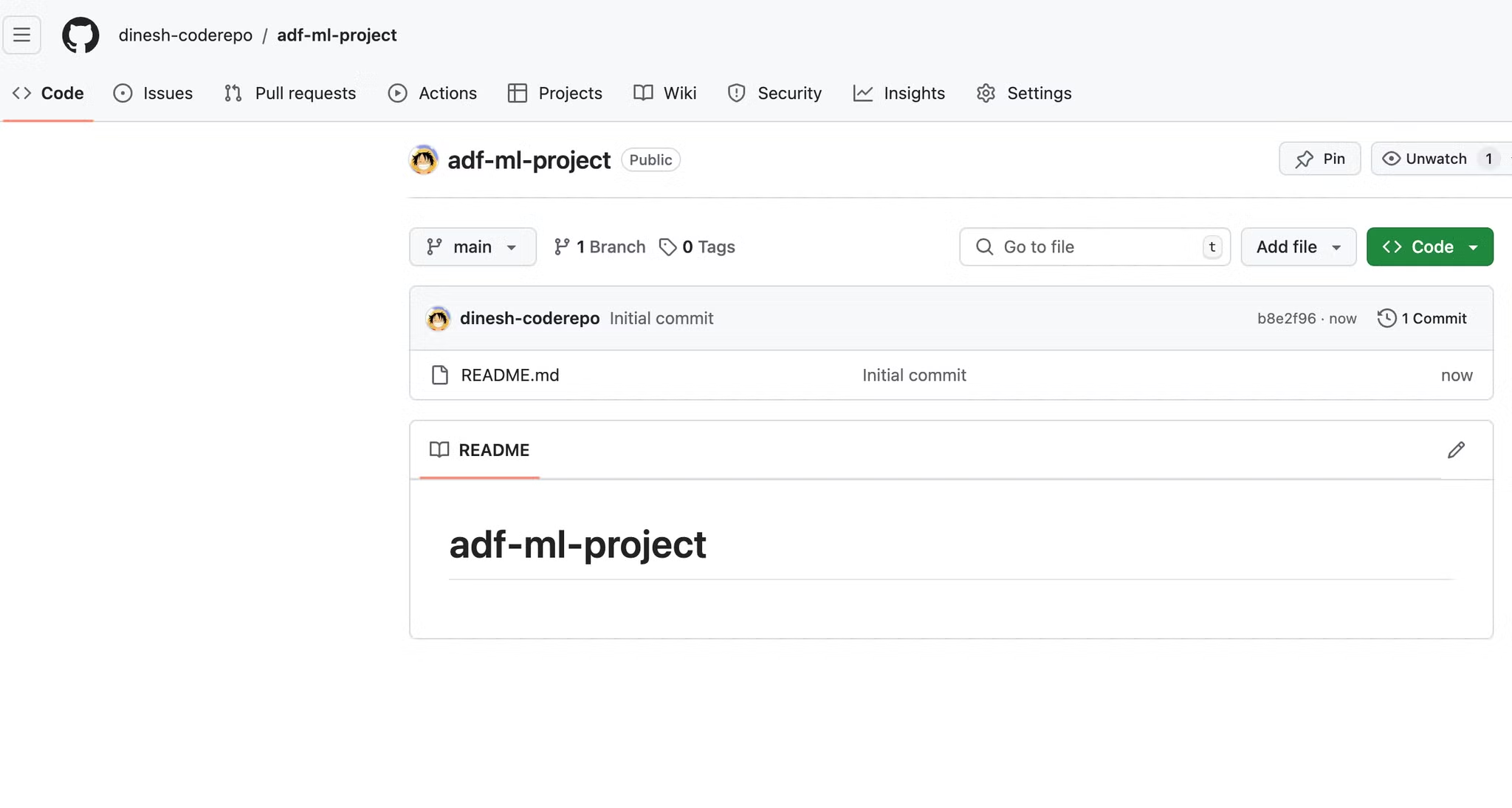

To begin, we'll create a new repository on GitHub to store our project files.

Setting Up Azure Resources

Next, we'll create a new resource group in Azure specifically for this project.

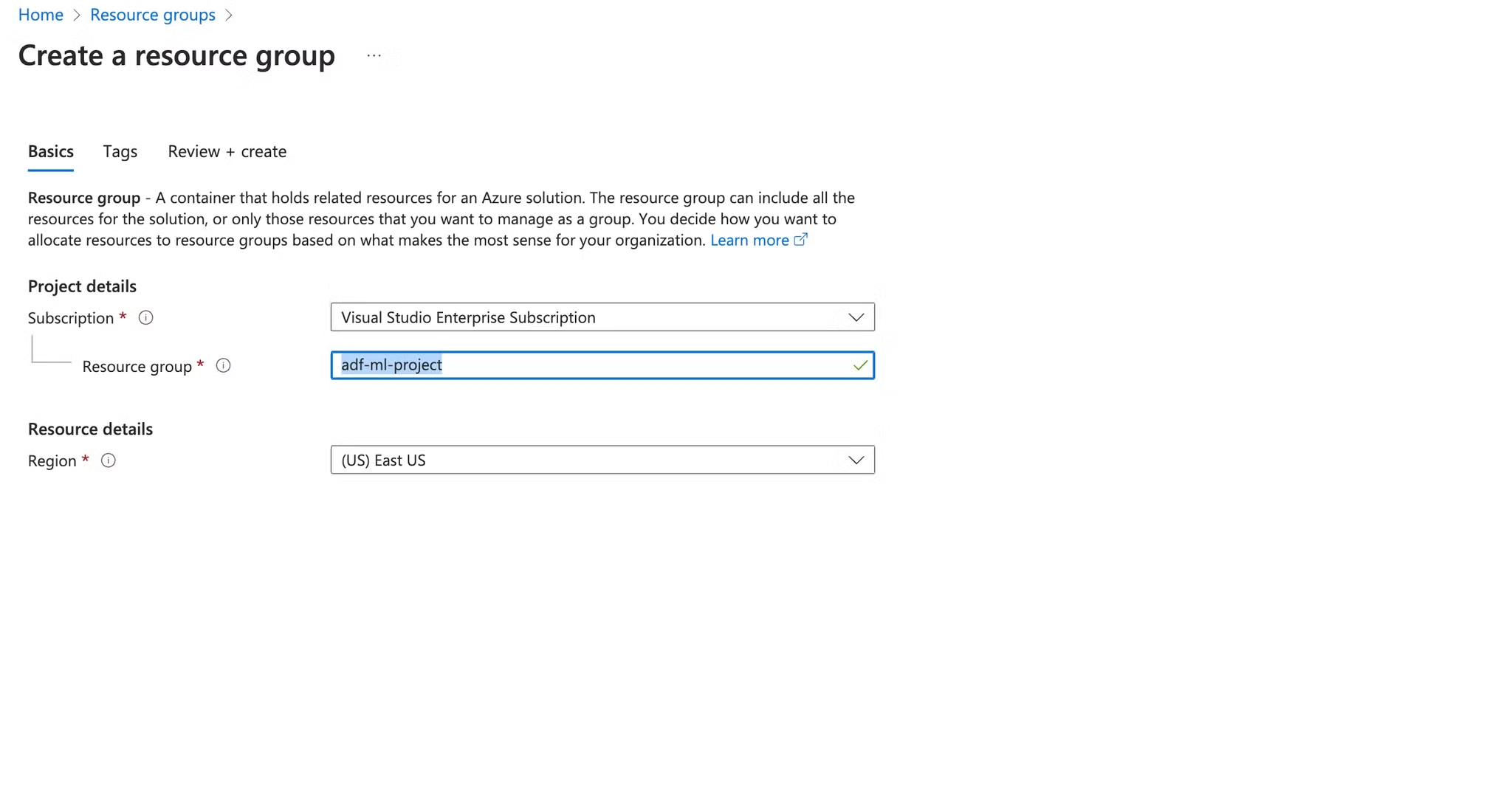

Resource Group Name: adf-ml-project

Integrating with Azure Data Factory

Connecting GitHub to ADF

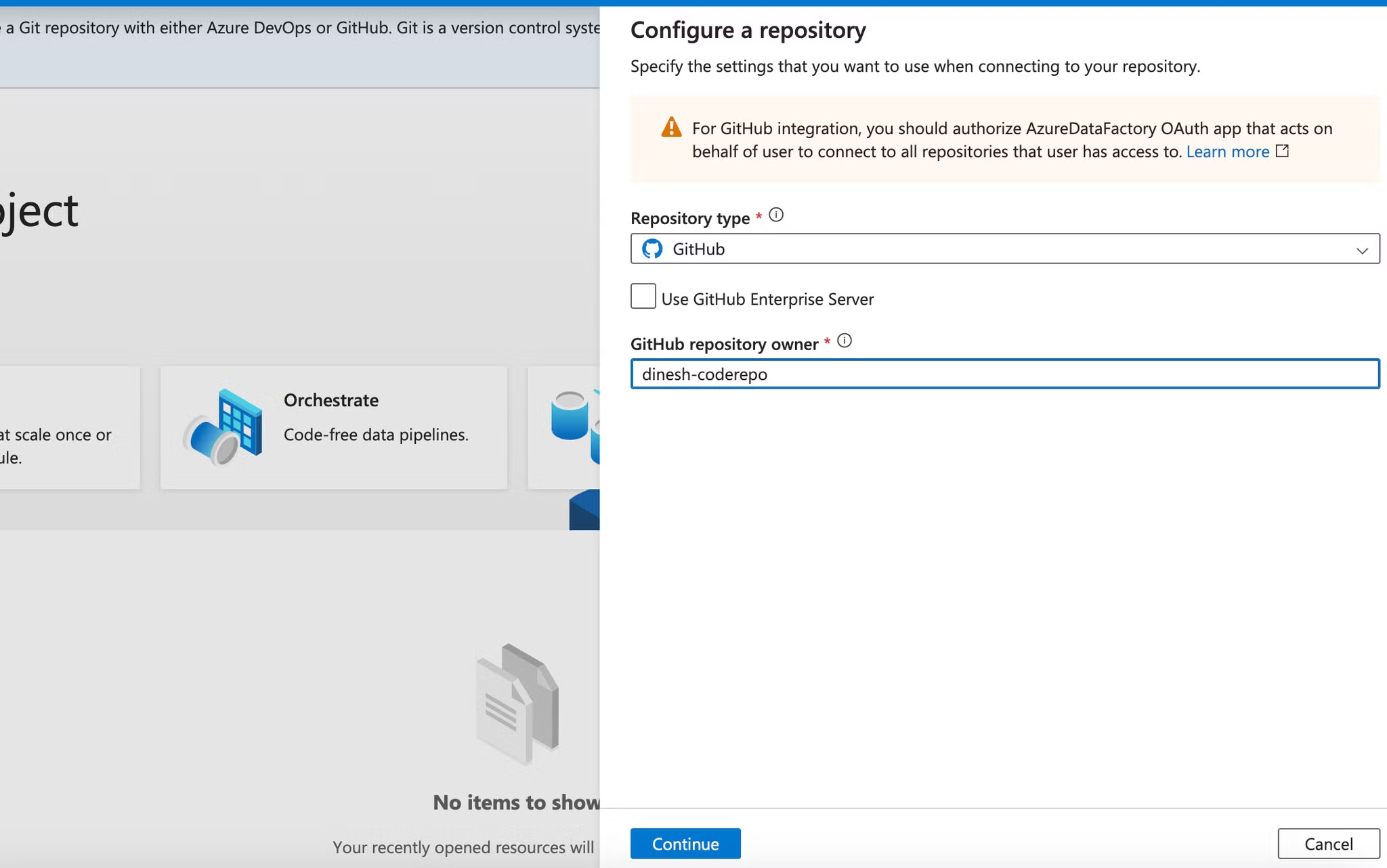

To leverage version control and collaborative features, we'll connect our GitHub repository to Azure Data Factory.

1. In the Azure Data Factory interface, navigate to the "Author & Monitor" section.
2. Click on "Set up code repository" to begin the integration process.

Authorizing ADF Access

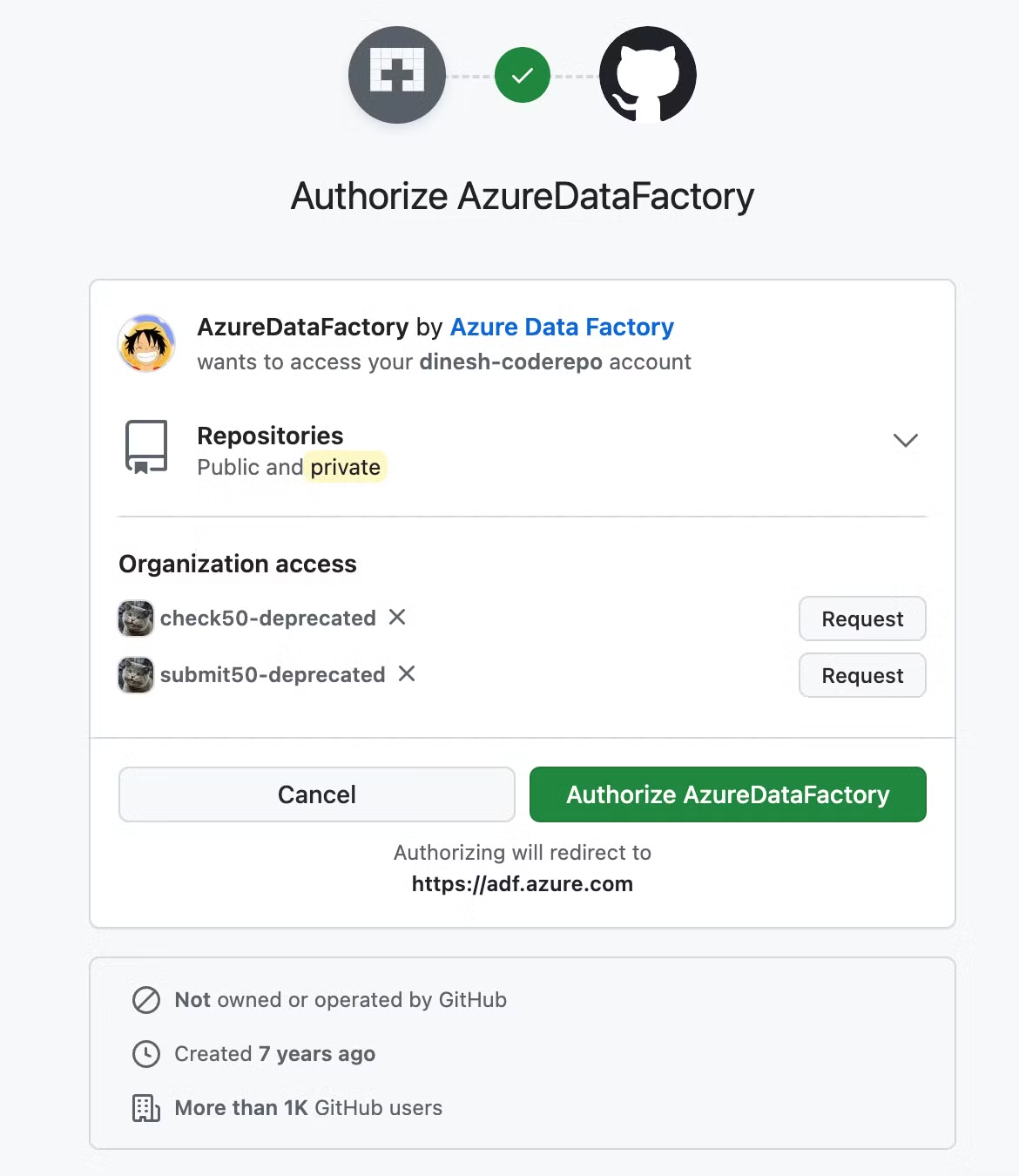

During the setup, you'll be prompted to authorize Azure Data Factory to access your GitHub account. This step is crucial for enabling seamless integration between ADF and your code repository.

Configuring Repository Settings

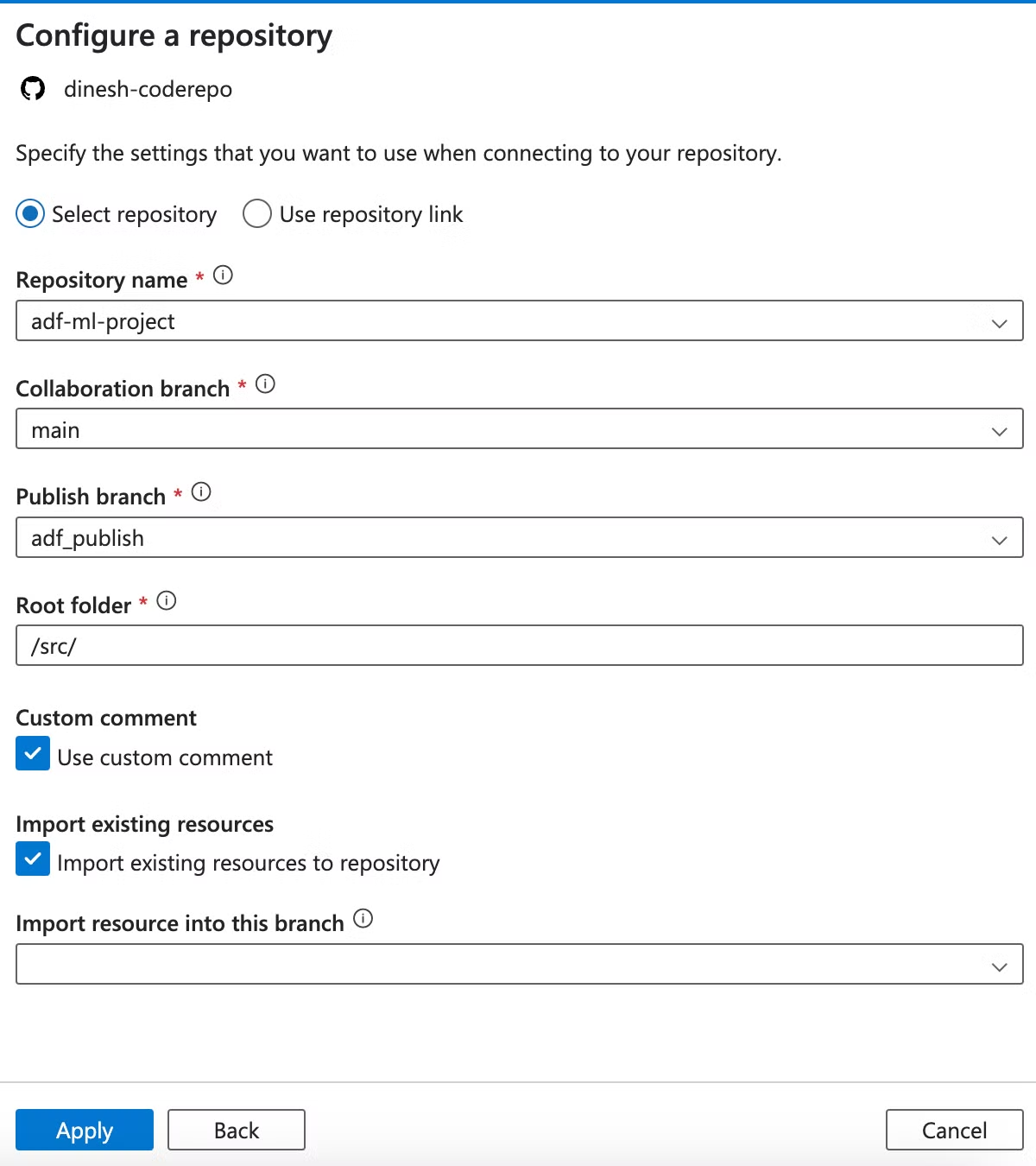

After authorization, choose which repository, development branch and root folder will hold the authored ADF definitions. These choices control where ADF definitions are authored; distinguish them from the publish branch used later for deployment templates.

Key points to note:

• Select your repository from the dropdown.
• Choose the branch you want to use for development.
• ADF will automatically create a "publish" branch for ARM templates.
• Select a repository root folder for ADF definitions. This does not convert arbitrary scripts into ADF JSON.

I will be using the MNIST dataset for this ML model : https://www.kaggle.com/code/prashant111/mnist-deep-neural-network-with-keras In this version we will build everything from UI of ADF itself , but we will document all steps one by one.

Creating a blob storage in the resource group which we will use for storing data and storing trained model

The repository stores the workflow definitions; Blob Storage has a different role. It holds the MNIST inputs and the trained model so that separate tasks can exchange artifacts without depending on one machine's local files. Create the storage account before configuring those tasks.

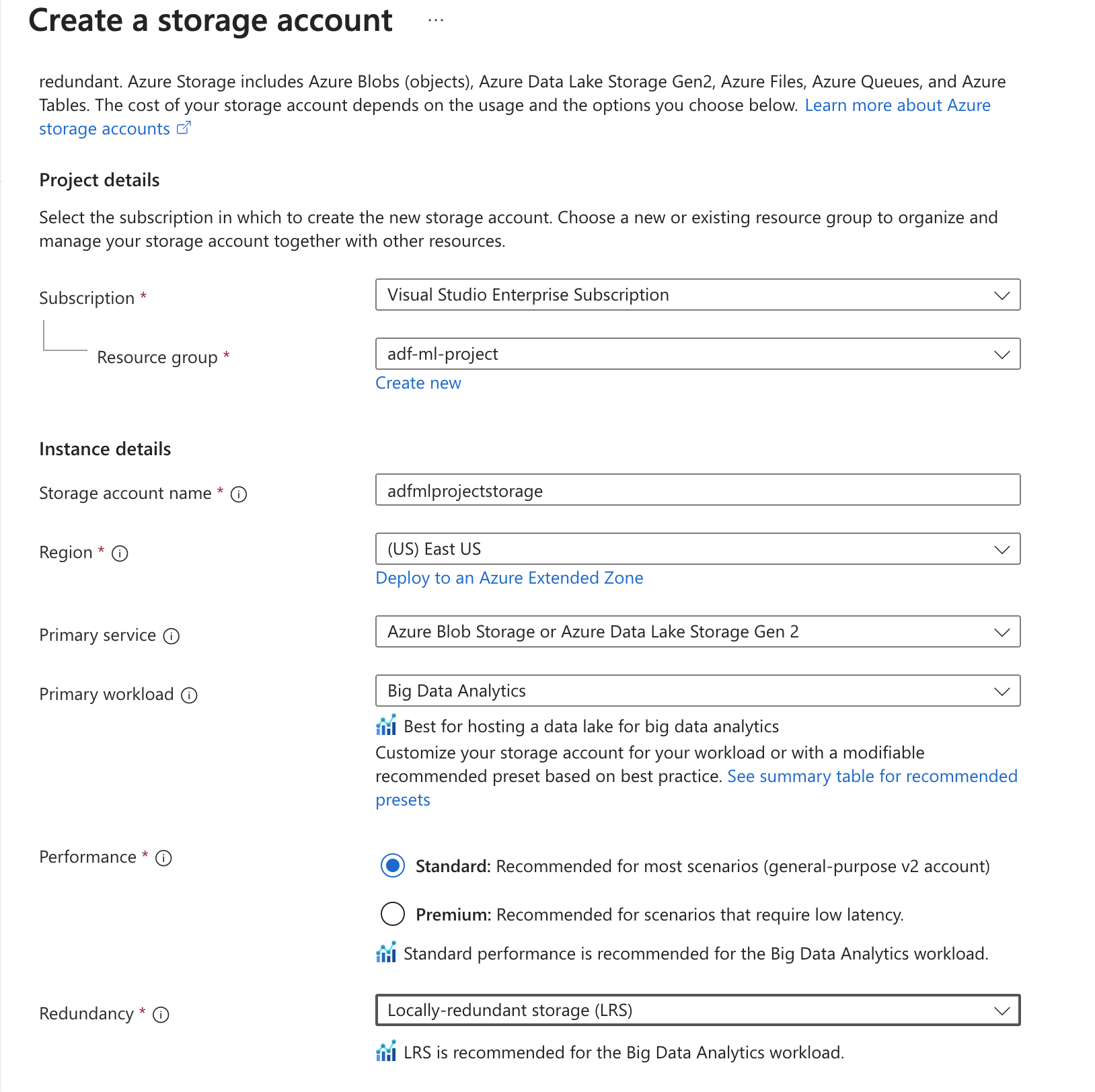

LRS was sufficient for this reconstructible MNIST proof of concept. For production, choose redundancy from the required failure tolerance, data residency, recovery point and budget—not a blanket rule that RA-GRS is always better. ZRS protects against an availability-zone failure; GRS adds asynchronous replication to a secondary region, and RA-GRS also permits reading that secondary copy. Geo-replication can lag, so a regional failure can still lose recent writes. See the Azure Storage redundancy trade-offs.

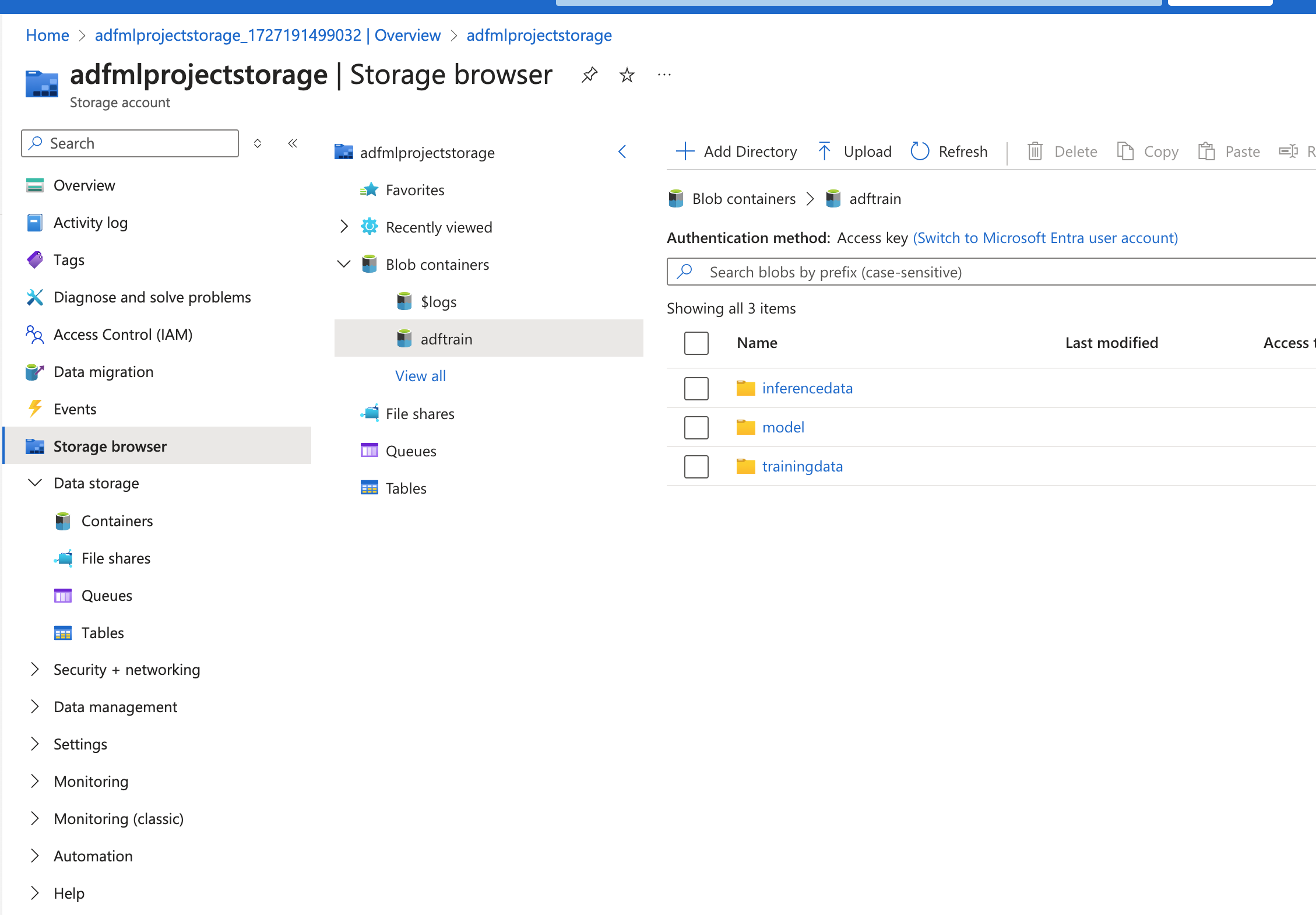

Created a container adftrain and folders for storing training data, inference data and trained model.

Adding access to the storage account via linked service

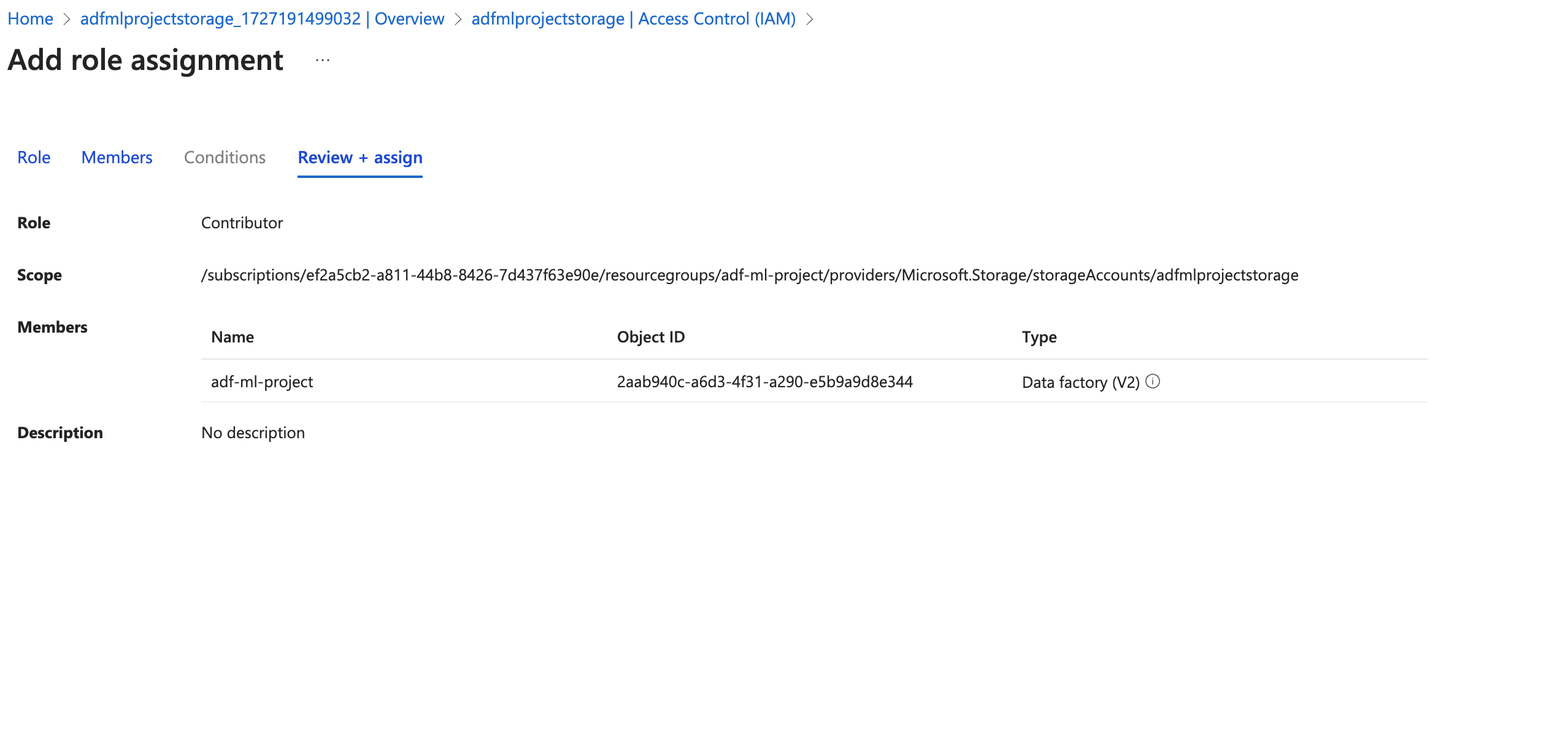

Add the Managed Identity of the ADF workspace and provide the least-privilege Blob data-plane role required by the linked service as below.

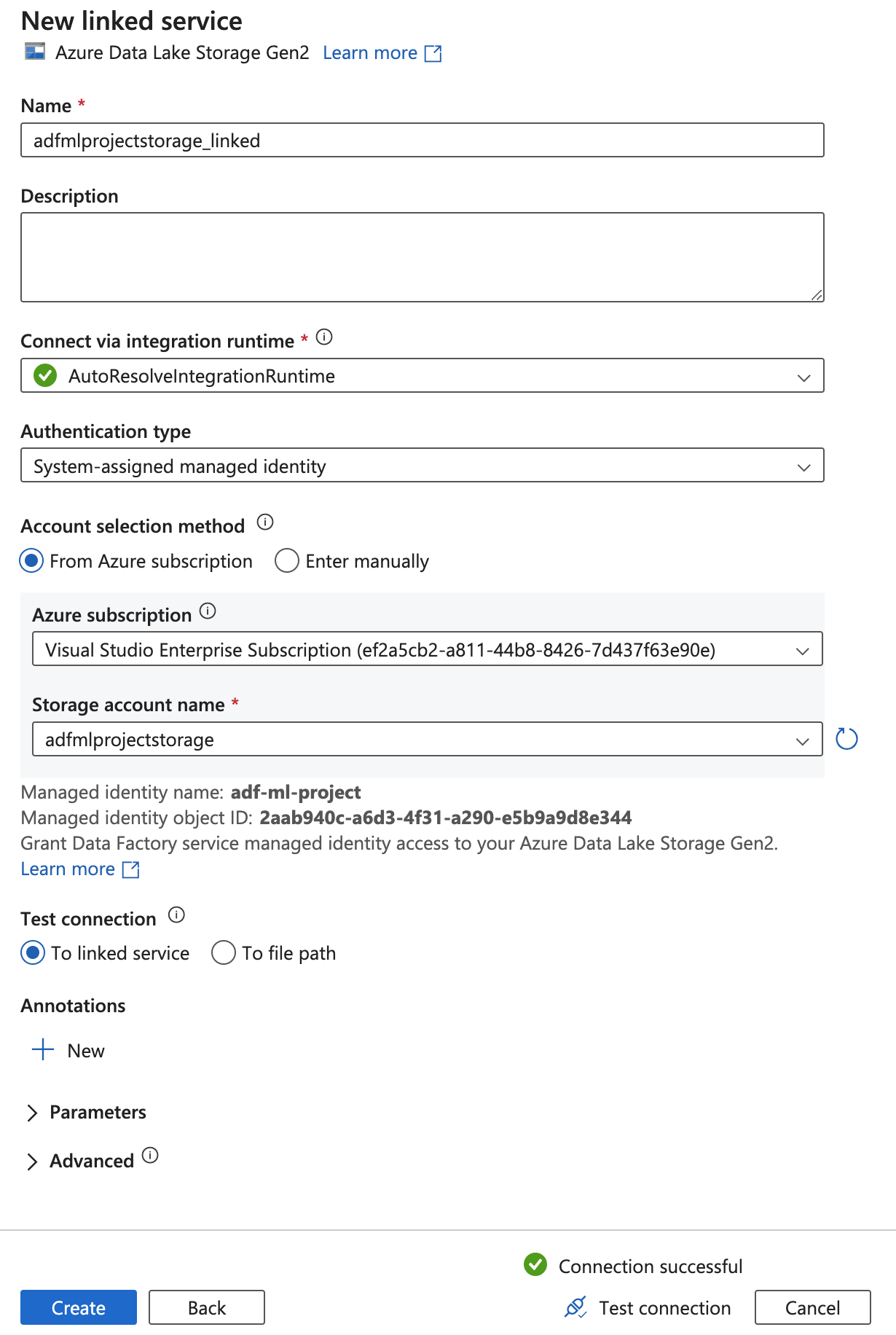

Once added then add this account to the linked service in the ADF workspace. Validate with the Test Connection at the bottom to check if the connection is successful.

Key points to note:

• With the above steps we created a ADF workspace, Storage account and Linked Service to access storage account from ADF service.
• Going forward we can keep publishing ARM template for any changes so that the repo : https://github.com/dinesh-coderepo/adf-ml-project , branch : adf_publish is updated with the latest changes.
• Publishing to adf_publish involves some checks from ADF and then the ARM template is published.
• Reverting a repository commit changes source history, not the running factory. Review and redeploy the intended definitions; data writes and tasks already performed need their own recovery plan.
• Ideally in production we should not publish the code changes directly to the repo without testing in the dev environment.
• We can have a CI/CD pipeline to monitor any changes to adf_publish branch and it detects any changes it will deploy these to target environment such as staging and production
• ARM deployment creates or updates the defined resources. Removing an ADF object from the template does not by itself prove it was deleted in the target; handle deletions and trigger stop/start with the documented ADF deployment procedure.
• We will cover this entire setup in an another blog post.

Data Flow Graph

Read this graph as the intended lifecycle of the MNIST artifacts, not as a record of an executed ADF pipeline. Blob Storage appears at both the input and output of training: the training task reads data from it and writes the model back for inference.

Figure text equivalent — labels and relationships

• Node “External Source” (square).
• Node “Local Processing” (square).
• Node “Blob Storage” (square).
• Node “ML Model Training” (square).
• Node “Prediction Service” (square).
• “External Source” leads to “Local Processing”: Fetch Data. Line: normal; ends: arrow point.
• “Local Processing” leads to “Blob Storage”: Upload. Line: normal; ends: arrow point.
• “Blob Storage” leads to “ML Model Training”: Training. Line: normal; ends: arrow point.
• “ML Model Training” leads to “Blob Storage”: Save the Trained model. Line: normal; ends: arrow point.
• “Blob Storage” leads to “Prediction Service”: Inference on top of the trained model. Line: normal; ends: arrow point.

In this graph:

• A : External Source (in our case, keras.datasets)
• B : Local Processing (preprocessing if needed)
• C : Blob Storage (where we store our data and trained model)
• D : ML Model (training process)
• E : Prediction Service (for inference)

Uploading data to blob storage

As part of next steps first we will get the mnist data from keras datasets and then upload it to blob storage. We are trying to mimic a real time scenario where we first get the data from some external source and then upload it to blob storage, in this case we are are getting the data from keras.datasets module then uploading it to blob storage.

Creating a Batch Account to run the scripts we would need

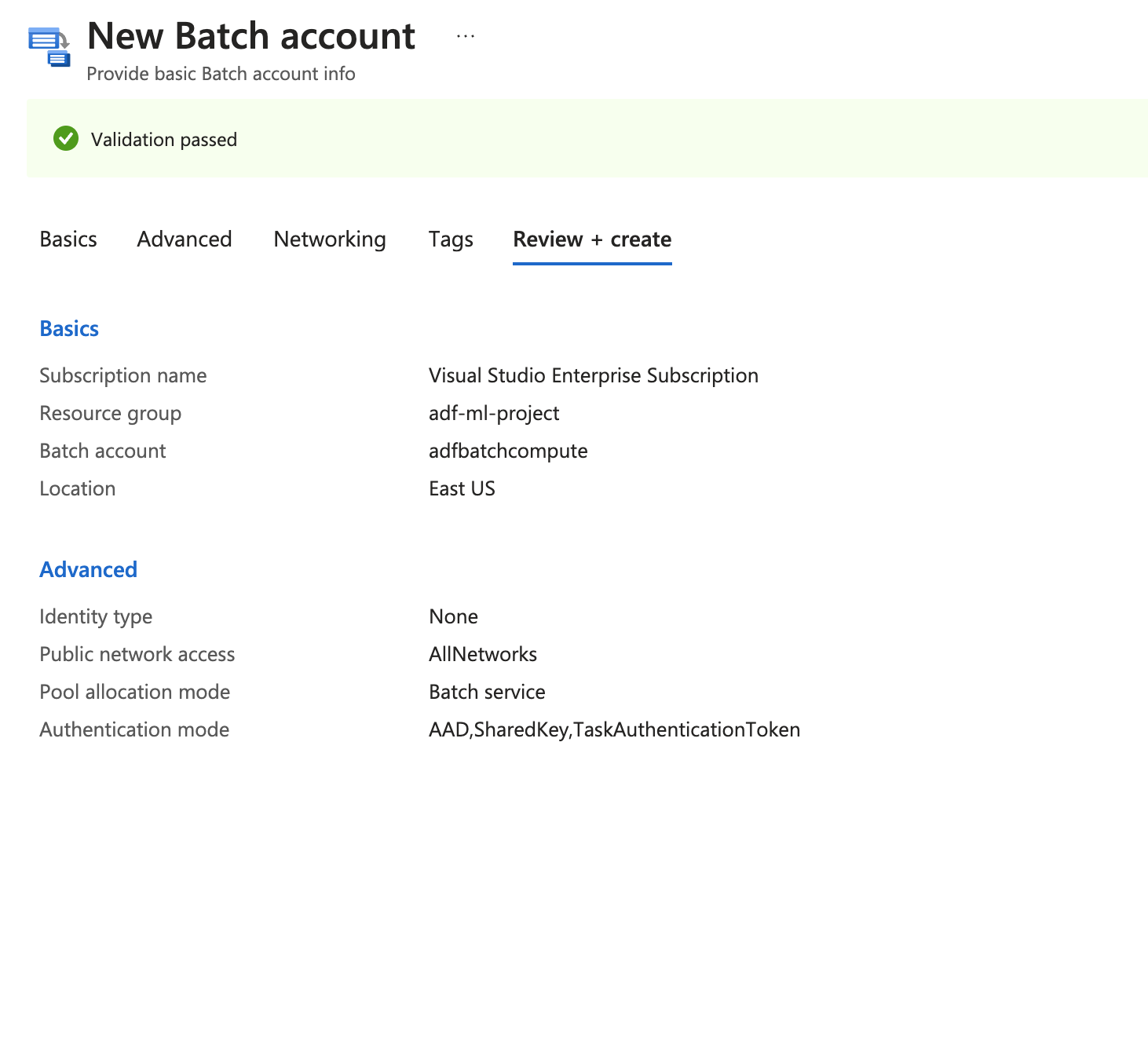

Storage alone cannot execute the download script. Azure Batch supplies that compute: the account manages the Batch resources, the pool supplies worker nodes, and a job groups the tasks to run on them. The archived screenshots follow that setup from account to pool to task.

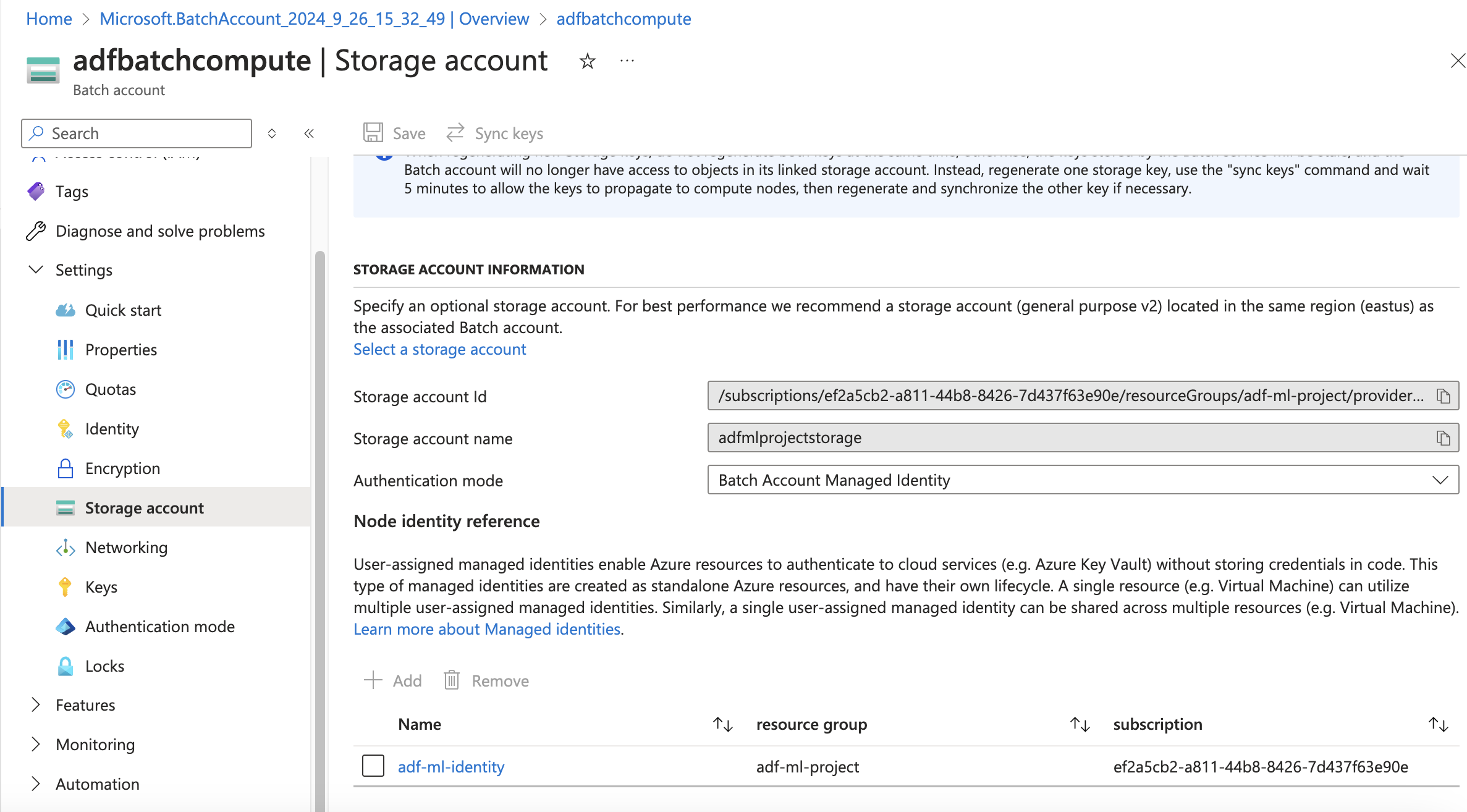

• Attaching the storage account to the batch service, with user managed identity authentication.

• Created a User managed identity, assigned the required Blob data-plane role at the smallest appropriate scope and added the identity to the batch account. After this we can link the storage account to the batch account.

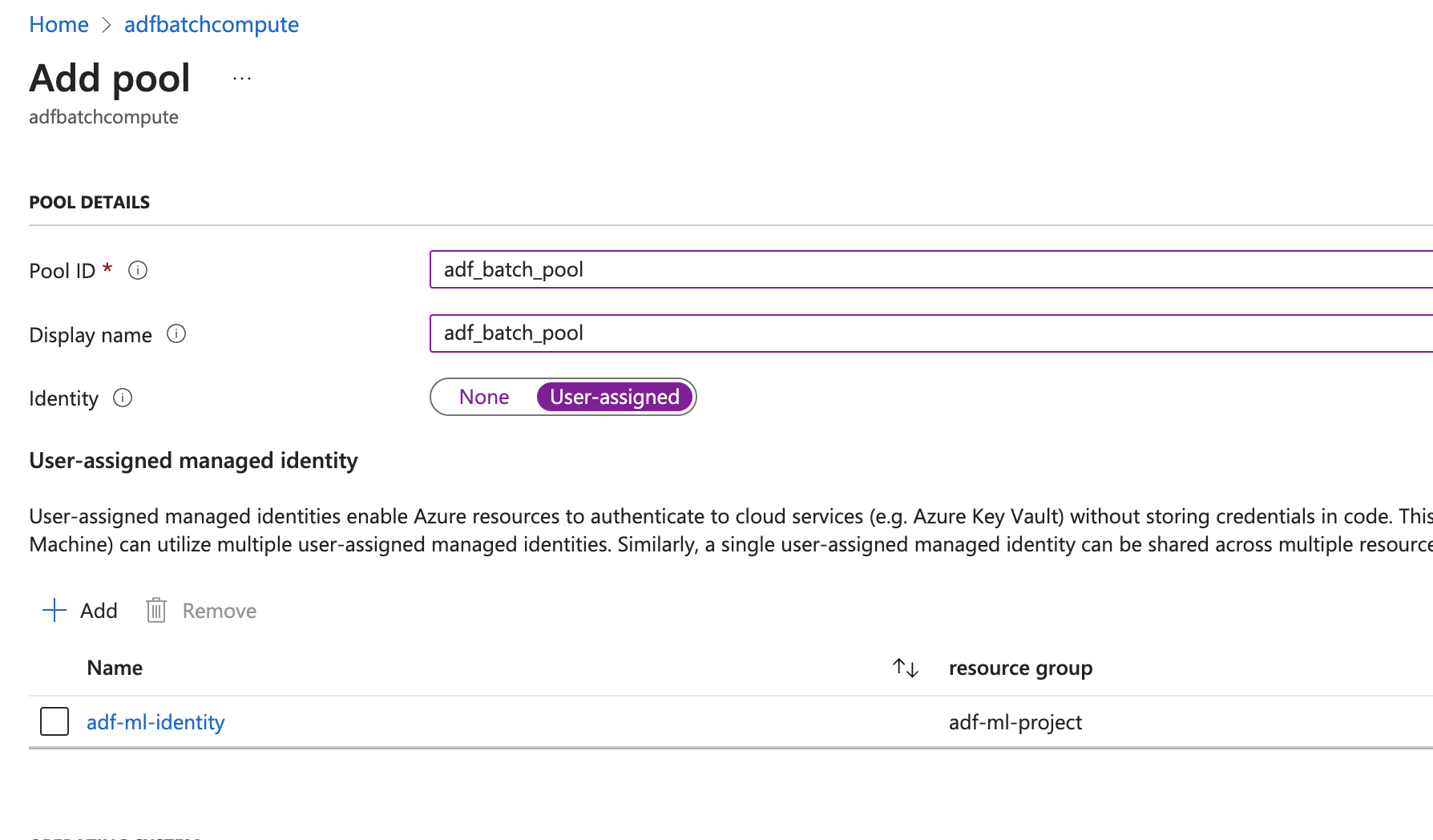

• Creating a Batch Pool and added the commands to install the python packaged neccesary for the job

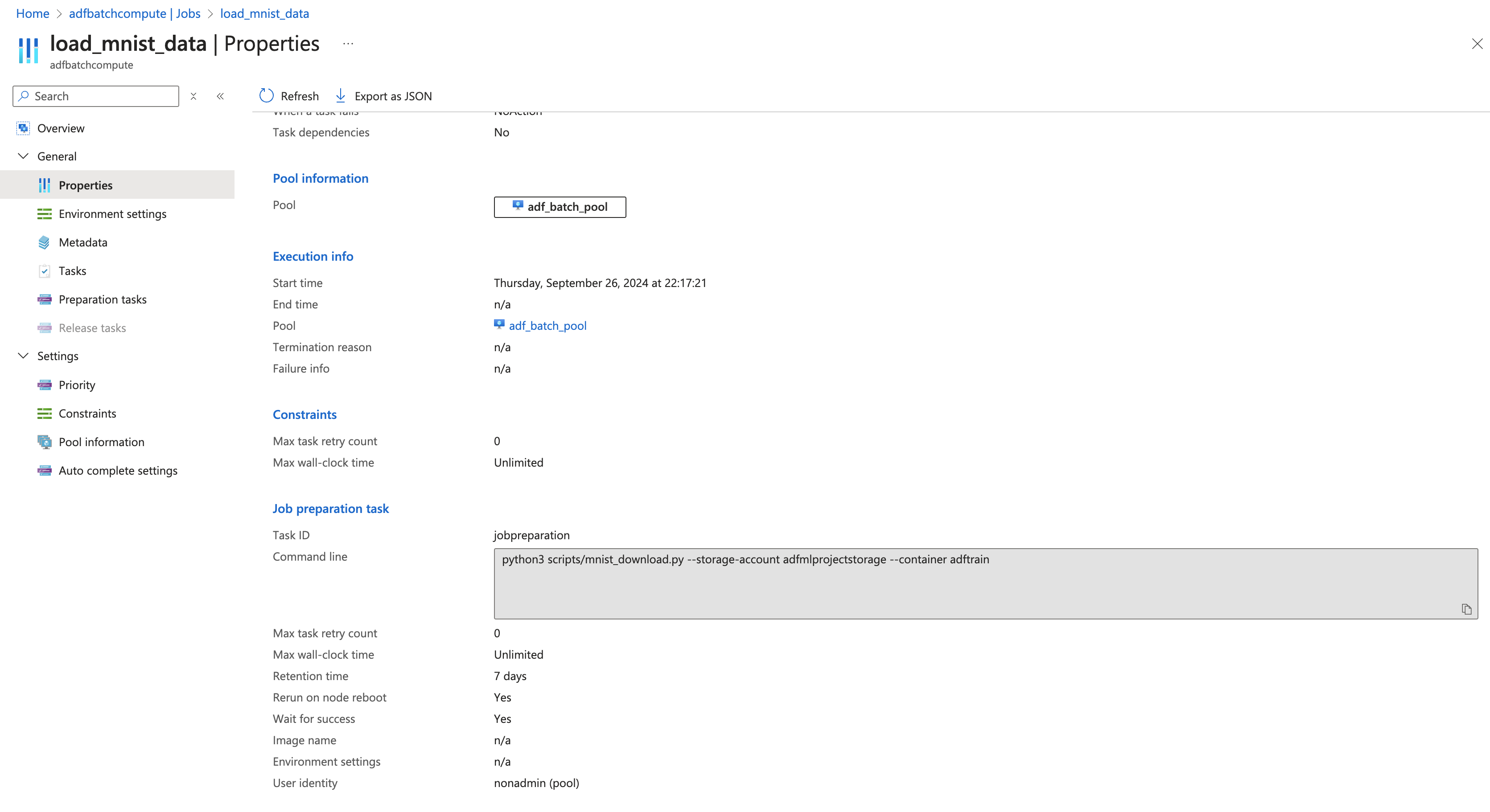

• After creating the pool we create a job with a task to run the script to download the data from keras.datasets and upload it to blob storage.

with this setup we can replicate the same for training and inference by just changing the script in the task.

• Follow below steps to configure on running the batch job from ADF pipeline, same configuration can be used for training and inference steps.
• Note : Keeping in mind the costs and this is a POC , not triggering from ADF for this test setup.
• In future I will be using this framework to implement a real world application in Upcoming projects.

Below flow can illustrate the flow for dumping data using batch and ADF

The first graph followed the data; this one follows the proposed control path from an ADF trigger to the upload task. Treat the pool node as the compute used by the task, not as proof that creating a job automatically provisions a pool. As noted above, this ADF-triggered path was not run in the cost-limited POC.

Figure text equivalent — labels and relationships

• Node “ADF Trigger” (square).
• Node “ADF Pipeline” (square).
• Node “ADF Custom activity” (square).
• Node “Batch task” (square).
• Node “Batch Pool” (square).
• Node “Storage Blob” (square).
• “ADF Trigger” leads to “ADF Pipeline”: Trigger the Pipeline. Line: normal; ends: arrow point.
• “ADF Pipeline” leads to “ADF Custom activity”: Initiate the task. Line: normal; ends: arrow point.
• “ADF Custom activity” leads to “Batch task”: Submits the configured command. Line: normal; ends: arrow point.
• “Batch task” leads to “Batch Pool”: Scheduled onto existing compute. Line: normal; ends: arrow point.
• “Batch Pool” leads to “Storage Blob”: Dump the data to Blob. Line: normal; ends: arrow point.

Running Azure Batch Jobs in ADF Pipeline

To have ADF submit a custom command to an existing Batch pool, configure the following proposed path. This does not attach a trigger to the manually created job above:

1. Create a Linked Service for Azure Batch
2. Create a pipeline with an ADF Custom activity
3. Publish and Run the Pipeline

Create a Linked Service for Azure Batch

First, we need to create a Linked Service to connect ADF to our Azure Batch account:

1. In ADF Studio, go to the "Manage" tab
2. Select "Linked services" and click "New"
3. Search for and select "Azure Batch"
4. Configure the Linked Service with your Batch account details

Create a Pipeline with Azure Batch Activity

Now, create a pipeline with a Custom activity backed by Azure Batch:

1. In ADF Studio, go to the "Author" tab
2. Create a new pipeline
3. Drag and drop the "Custom" activity from the Activities pane
4. Select the Batch linked service and specify the command, for example python train.py, under Settings. Supply the Blob resource linked service and folder path when the script and dependencies need staging; otherwise provision them on the pool nodes. A linked service alone does not install Python packages.

Publish and Run the Pipeline

After setting up the pipeline:

1. Click "Publish All" to save your changes
2. Click "Add trigger" > "Trigger now" to run the pipeline manually

Key points to note:

Before extending this setup to training and inference, verify a complete run: the upload task should leave data in the expected container, training should produce a saved model, and inference should load that artifact. A successful linked-service connection alone does not establish those outcomes. Also check the identities' data-plane permissions: management-plane Contributor access alone does not grant Blob data access.

• Ensure your Python script is uploaded to the specified Blob storage container.
• The Custom activity submits your command to the configured Batch pool. Pool sizing, task dependencies and application correctness remain separate concerns.
• You can add additional activities before or after the Custom activity for more complex workflows.
• This setup provides a scalable way to integrate your data processing and ML tasks into your ADF pipelines, allowing for better orchestration and management of your entire ML workflow.

Corrected contracts and failure analysis

ADF orchestrates dependencies and activity status; Batch executes custom code in an existing configured pool; Blob Storage carries immutable inputs and versioned model artifacts. The ADF activity is Custom activity, not a generic button that runs an already-created arbitrary Batch job. Match the linked-service authentication mode to the connector documentation rather than assuming every service supports the same identity shape.

Contributor grants management operations, not Blob data-plane access. Scope Storage Blob Data Reader or Contributor to the needed container and principal; evaluate Batch task identity separately from ADF identity. Git integration stores authored ADF definitions, not arbitrary Python transformed into JSON because a root folder is named src. Publishing templates is not a transactional rollback of data or already-executed tasks.

Use a run ID and input/model digest in artifact paths. A retry must either overwrite an identical output safely or detect that its intended version already exists. Validate saved-model readability before publishing a completion marker; do not let inference discover a partially written model.

Boundary exercise with solution

Training fails after writing half a model file. How should the downstream inference activity know not to consume it?

Solution and reasoning

Write to a run-specific temporary location, verify the artifact, then publish a manifest/completion marker with its digest. Depend on successful activity completion and the verified manifest, not blob existence alone. Retrying must reuse the same input identity or create a new explicit run version.

Source-backed review notes

• Use custom activities in a pipeline - Azure Data Factory & Azure Synapse | Microsoft Learn — accessed 2026-10-07. Exact supporting passage: “To move data to/from a data store that the service does not support, or to transform/process data in a way that isn't supported by the service, you can create a Custom activity with your own data movement or transformation logic and use the activity in a pipeline. The custom activity runs your customized code logic on an Azure Batch pool of virtual machines.”
• Assign an Azure Role for Blob Data Access - Azure Storage | Microsoft Learn — accessed 2026-10-07. Exact supporting passage: “To access blob data in the Azure portal by using Microsoft Entra credentials, a user must have the Azure Resource Manager Reader role, at a minimum, in addition to a data access role such as the Storage Blob Data Reader or Storage Blob Data Contributor role. See Data access from the Azure portal.”
